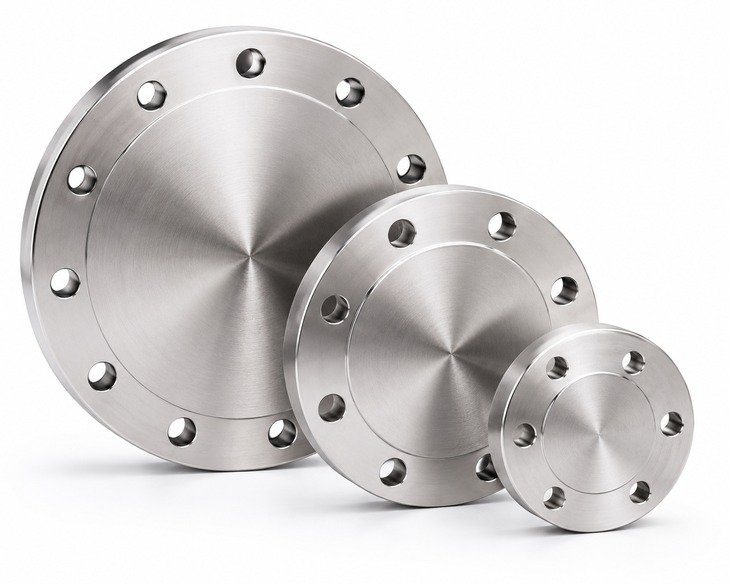

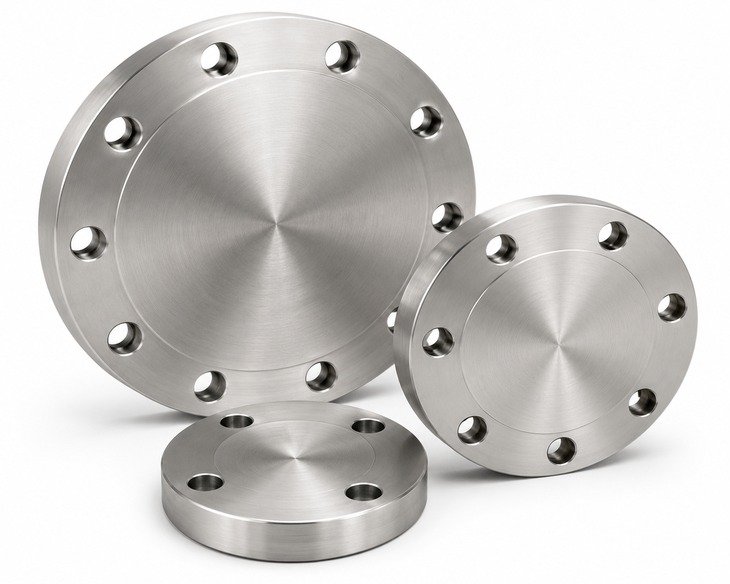

A tantalum blind flange is a non-bored flange designed to seal pipeline ends, katup, reactor nozzles and pressure equipment openings. It is selected for highly corrosive media such as hydrochloric acid, asam sulfat, asam nitrat, brom, chlorides and pharmaceutical process fluids where tantalum provides outstanding resistance and long service life. Typical sealing faces include RF, FF and RTJ depending on pressure rating and gasket design.
SASA FLANGE supplies forged, machined and clad tantalum blind flanges in standard and custom dimensions. We support chemical analysis, mechanical testing of the backing material where applicable, pemeriksaan dimensi, pengujian PMI, sealing face verification and complete documentation. Every order can be supplied with EN 10204 3.1 sertifikat, full heat number traceability and customized processing according to drawings or project specifications.
- ✓Nama Produk: Tantalum Blind Flange
- ✓Kelas Bahan: R05200, R05400, tantalum-clad steel or stainless steel
- ✓Jenis Produk: Solid blind flange for pipeline and equipment end closure
- ✓Fitur Utama: Exceptional corrosion resistance in aggressive chemical service
- ✓Aplikasi: Pengolahan asam, tanaman farmasi, chlor-alkali units, reaktor, pressure vessels and specialty piping systems
Parameter Produk
| Nama Produk | Tantalum Blind Flange |
| Kelas Bahan | Pure Tantalum R05200, Tantalum R05400, Tantalum-clad carbon steel, Tantalum-clad stainless steel |
| Jenis Bahan | Reactive metal / corrosion resistant metal / clad composite |
| Formulir Produk | Forged and machined blind flange, cut plate blind flange, tantalum-clad blind flange |
| Rentang Ukuran | DN15 – DN600 (1/2 inci – 24 inci) |
| Kelas Tekanan | Kelas 150 – 600 / PN10 – PN100 |
| Menyegel Wajah | Federasi Rusia, FF, RTJ, PT, MFM |
| Perawatan Permukaan | dikerjakan, Acar, Degreased, Clean packed; protective coating on carbon steel backing where applicable |
| Standar | ASME B16.5, EN 1092-1, DIN 2527, JIS B2220, GB/T 9119 atau spesifikasi pelanggan |
| Inspeksi | Analisis Kimia, Uji Mekanik, Tes PMI, Dimensi, Hidrostatik |
| Sertifikat | EN 10204 3.1 Sertifikat Bahan tersedia |
| Layanan Pemrosesan | Pemotongan, Pemesinan CNC, Pengeboran Khusus, Pemrosesan Ukuran Khusus |
Komposisi Kimia
The chemical composition below is for reference for pure tantalum material commonly used for corrosion resistant flange production. Final composition depends on the selected grade, melting practice and applicable material certificate. For supplied products, the confirmed chemistry shall follow the relevant standard, purchase specification and EN 10204 3.1 MTC.
| Elemen | C | Dan | M N | P | S | Kr | Di dalam | Mo | Lainnya |
|---|---|---|---|---|---|---|---|---|---|
| Isi % | ≤0,01 | ≤0,01 | ≤0,01 | ≤0,01 | ≤0,01 | — | — | — | Ta ≥99.9, Nb ≤0,10, HAI ≤0,015, N ≤0,01, H ≤0,0015 |
Sifat Mekanik
Mechanical properties of tantalum blind flanges may vary with grade, purity level, processing route, annealed or stress-relieved condition, and section thickness. The values below are typical reference data for wrought tantalum materials used in machining or clad production. Actual supplied values shall be stated on the inspection report and material certificate when applicable.
| Nilai | Kekuatan Tarik | Kekuatan Hasil | Pemanjangan | Kekerasan | Kepadatan |
|---|---|---|---|---|---|
| R05200 Anil | 207 MPa min | 138 MPa min | 25% menit | 90HB maks | 16.6 gram/cm3 |
| R05400 Anil | 207 MPa min | 138 MPa min | 20% menit | 100HB maks | 16.6 gram/cm3 |
Tabel Ukuran Umum
| Rentang Ukuran | Kelas Tekanan | Menyegel Wajah | Bahan | Tersedianya |
|---|---|---|---|---|
| DN15 – DN50 | Kelas 150 – 600 | Federasi Rusia / FF | R05200 / clad | Saham / Produksi |
| DN65 – DN300 | Kelas 150 – 600 | Federasi Rusia / RTJ | R05200 / R05400 / clad | Produksi |
| DN350 – DN600 | Kelas 150 – 300 | Federasi Rusia / FF | Tantalum-clad steel | Produksi |
| DN700 – DN1500 | PN10 – PN40 | Federasi Rusia / FF | Tantalum-clad steel | Dibuat Sesuai Pesanan |
Perbandingan Spesifikasi Berbeda
| Jenis | Keterangan | Penggunaan Khas |
|---|---|---|
| Solid Tantalum Blind Flange | Manufactured from wrought or forged tantalum with full corrosion resistant section | Small sizes, high-purity service, severe acid media |
| Tantalum-Clad Blind Flange | Carbon steel or stainless steel backing with bonded tantalum corrosion layer | Cost-effective solution for larger sizes and moderate pressure |
| Flensa Buta Wajah Terangkat | Standard raised sealing face for gasket seating in ASME and EN piping systems | General chemical process lines and equipment nozzles |
| Flensa Buta RTJ | Ring type joint groove for metal ring gasket and higher sealing integrity | Critical process service and pressure-tight closures |
Standar Setara dan Nama Internasional
Tantalum blind flanges are generally manufactured to dimensional flange standards, while the material grade is specified separately by reactive metal or customer material requirements. Equivalent flange dimensions can be produced for international projects, and tantalum or tantalum-clad construction is matched to the requested standard, tipe menghadap, drilling pattern and pressure rating.
| Standar / Wilayah | Kode Standar | Kelas Khas / Setara |
|---|---|---|
| Amerika Serikat | ASME B16.5 | Tantalum R05200 / R05400 or tantalum-clad construction |
| Eropa | EN 1092-1 | Tantalum blind flange to PN dimensions, material per project specification |
| Jerman | DIN 2527 / 2566 | Tantalum or tantalum-lined / clad blind flange |
| Jepang | JIS B2220 | Tantalum blind flange for JIS drilling and facing |
| Cina | GB/T 9119 | Tantalum blind flange or clad blind flange to GB dimensions |
Alur Proses Produksi
Manufacturing of tantalum blind flanges requires strict control of raw material purity, machining condition, contamination prevention and dimensional accuracy. For clad products, bonding quality and backing material inspection are also carefully controlled throughout production.
- 1. Pemilihan Bahan Baku
- 2. Penempaan / Pemotongan
- 3. Perlakuan Panas
- 4. Pemesinan Kasar
- 5. Selesaikan Pemesinan
- 6. Pengeboran
- 7. Perawatan Permukaan
- 8. Inspeksi
- 9. Menandai
- 10. Sedang mengemas
- 11. Pengiriman
| Langkah Proses | Keterangan | Titik Kendali Mutu |
|---|---|---|
| Bahan mentah | Pilih billet tantalum bersertifikat, piring atau blanko yang dibalut | Sertifikat material dan ketertelusuran |
| Penempaan | Hot or warm forming where applicable to achieve required shape | Forming condition and material integrity |
| Perlakuan Panas | Stress relief or annealing according to material condition | Kontrol suhu dan waktu penahanan |
| permesinan | Menyegel wajah, lubang baut, ukuran | Keakuratan dimensi dan penyelesaian permukaan |
| Inspeksi | Inspeksi akhir sebelum pengiriman | Dimensi, permukaan, PMI, hidrostatik |
Inspeksi Produk
1. Pemeriksaan Komposisi Kimia
Chemical composition inspection is carried out to verify tantalum purity and control residual elements such as oxygen, nitrogen, hydrogen and niobium within the specified range. For clad products, the backing steel chemistry is also checked against the ordered material standard. Test results are reviewed against the purchase specification and recorded in the material documentation.
2. Pengujian Sifat Mekanik
Mechanical testing is performed according to the selected material condition and project requirement. Typical verification includes tensile strength, kekuatan hasil, elongation and hardness for tantalum or for the backing material in clad construction. These tests help confirm that the flange has suitable strength, ductility and fabrication quality for safe service in demanding process systems.
3. Inspeksi Dimensi
Each tantalum blind flange is inspected for outside diameter, ketebalan, lingkaran baut, ukuran lubang baut, facing height, groove details where applicable and overall flatness. Sealing surfaces are visually checked for scratches, dents and machining defects. Inspection is performed in accordance with ASME, EN, DIN, JIS, GB or approved customer drawings to ensure proper fit-up during installation.
4. Pengujian PMI dan Pengujian Hidrostatis
PMI testing is used to confirm the supplied corrosion resistant material and avoid grade mix-up, especially for tantalum and tantalum-clad products used in critical chemical service. Hydrostatic testing is applied when required as part of assembly or project quality plans. SASA FLANGE dapat menyediakan EN 10204 3.1 sertifikat, catatan inspeksi, dimensional report and traceable heat number identification.
Kemasan Produk
- ✓Kemasan Kotak Kayu: Cocok untuk produk bertekanan tinggi dan berdiameter besar
- ✓Pengepakan Palet dengan Shrink Wrap: Cocok untuk pengiriman batch dan ukuran standar
- ✓Lapisan Minyak Anti Karat + Kertas Tahan Air: Digunakan untuk perlindungan angkutan laut
- ✓Kantong Plastik Individu + Karton: Digunakan untuk perlengkapan kecil dan produk berulir
- ✓Hapus Penandaan: Nilai, ukuran, kelas tekanan, nomor panas dan nomor PO
Aplikasi
Tantalum blind flanges are used in corrosive process systems where conventional stainless steel, nickel alloys or lined components may not provide sufficient service life. They are especially suitable for acid handling, specialty chemical production and contamination-sensitive process lines requiring dependable sealing and excellent corrosion resistance.
| Industri | Aplikasi Khas | Mengapa Produk Ini Digunakan |
|---|---|---|
| Minyak dan Gas | Selip injeksi kimia, acid handling units, specialty process packages | Provides corrosion resistance for aggressive treatment chemicals and critical shutdown points |
| Pengolahan Kimia | Reactor nozzles, acid transfer lines, chlorine and bromine related systems | Tantalum performs extremely well in severe corrosive media and extends service life |
| Pembangkit Listrik | FGD chemical systems, specialty dosing units, laboratory and pilot process lines | Used where process chemicals attack common metallic flange materials |
| Pengolahan Air | Dosis bahan kimia dengan kemurnian tinggi, oxidizing chemical service, specialty treatment equipment | Offers reliable sealing and contamination resistance in aggressive media |
| Kelautan dan Lepas Pantai | Modul kimia lepas pantai, corrosion critical utility systems, selip proses khusus | Selected for compact systems exposed to harsh chemical environments and demanding maintenance cycles |
Mengapa Memilih SASA FLANGE?
- ✓Produsen profesional Flensa Buta untuk proyek industri global
- ✓Ukuran yang disesuaikan, kelas tekanan dan kelas material sesuai gambar
- ✓Dukungan standar penuh: ASME, EN, DIN, JIS, GB, Spesifikasi gost dan pelanggan
- ✓Ketertelusuran material dengan kontrol nomor panas dan EN 10204 3.1 sertifikat materi
- ✓Analisis kimia, pengujian mekanis, pengujian PMI, pemeriksaan hidrostatik dan dimensi
- ✓Ketersediaan stok untuk barang standar, waktu tunggu 3-7 hari; produksi khusus 15-30 hari
- ✓Kemasan kelas ekspor untuk laut, transportasi udara dan darat
- ✓15+ pengalaman bertahun-tahun memasok 50+ negara-negara di seluruh dunia
Pertanyaan Umum
Q: What is a tantalum blind flange?
A: A tantalum blind flange is a solid flange without a bore used to close the end of a pipeline, valve opening, vessel nozzle or process connection. It is selected for highly corrosive service because tantalum offers excellent resistance to many aggressive chemicals. It is commonly supplied in solid tantalum or tantalum-clad construction depending on size, pressure and budget.
Q: What materials are available for tantalum blind flange?
A: SASA FLANGE can supply pure tantalum grades such as R05200 and R05400, as well as tantalum-clad carbon steel or stainless steel constructions. Solid tantalum is often used for smaller sizes or high-purity service, while clad designs are more economical for larger diameters. Pemilihan material tergantung pada media proses, suhu, pressure and corrosion allowance requirements.
Q: Kelas tekanan apa yang didukung?
A: Typical supply range for tantalum blind flanges is ASME Class 150 ke 600 and EN/DIN PN10 to PN100, depending on size and construction type. Smaller solid tantalum blind flanges can be produced for higher integrity applications, while large sizes are commonly made as clad designs. Pressure rating is manufactured according to the requested dimensional standard and service conditions.
Q: Bisa SASA FLANGE menyediakan ukuran khusus?
A: Ya. SASA FLANGE supplies custom tantalum blind flanges according to drawings, project specifications and international flange standards. We can produce non-standard dimensions, special bolt drilling, RF or RTJ sealing faces, clad structures, special thicknesses and mating requirements for equipment nozzles. Custom machining and inspection documents are provided to support industrial installation and project approval.
Q: Sertifikat apa yang diberikan?
A: SASA FLANGE dapat menyediakan EN 10204 3.1 sertifikat material bersama dengan laporan pengujian pabrik, catatan inspeksi dimensi dan verifikasi PMI. For project orders, additional documentation can include chemical analysis reports, mechanical test records for applicable materials, hydrostatic testing records when required, marking traceability and packing list details. Full heat number traceability is maintained from raw material to shipment.
