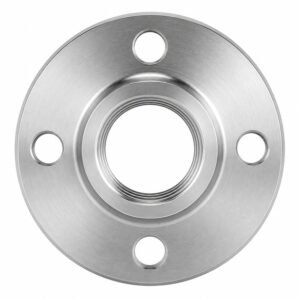

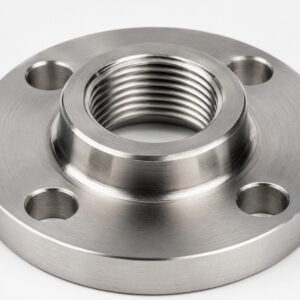

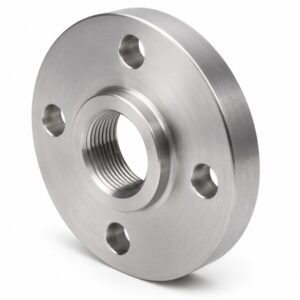

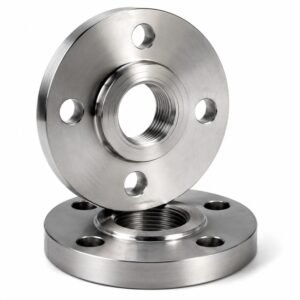

Zirconium threaded flanges are internally threaded pipe flanges designed for non-welded assembly where excellent corrosion resistance is required. Compared with carbon steel and many stainless grades, zirconium offers outstanding resistance in organic acids, acetic acid, formic acid, hydrochloric service under specific controlled conditions, and other aggressive media. These flanges are commonly used in chemical plants, pharmaceutical process lines, 海洋システム, specialty reactors and high-purity service where contamination control and corrosion performance are critical.
SASA FLANGE supplies zirconium threaded flanges in standard and customized dimensions according to ASME B16.5, EN 1092-1, DIN, JIS and GB requirements where applicable. 各注文は化学分析でサポート可能, 機械的試験, 寸法検査, PMIテスト, EN 10204 3.1 certificate and full heat number traceability. カスタムドリル, special facing, non-standard thickness and project-specific marking are available on request.
- ✓製品名: ジルコニウムねじ付きフランジ
- ✓材質グレード: ASTM B564 R60702 / R60704 / R60705
- ✓製品タイプ: Forged or machined threaded flanges with female NPT or BSP threads
- ✓主な特長: Excellent corrosion resistance with weld-free installation for threaded piping systems
- ✓アプリケーション: 化学処理, acid service, 海洋システム, pharmaceutical plants and specialty water treatment
製品パラメータ
| 製品名 | ジルコニウムねじ付きフランジ |
| 材質グレード | ASTM B564 R60702, R60704, R60705 |
| 材質の種類 | Zirconium and zirconium alloy |
| 製品形態 | Forged flange, machined flange, threaded flange |
| サイズ範囲 | DN15 – DN600 (1/2 インチ – 24 インチ) |
| 圧力クラス | クラス 150 – 1500 / PN10 – PN100 |
| シール面 | RF, FF, RTJ |
| 表面処理 | 漬け物, machined finish, cleaned, passivated, glass bead blasted |
| 標準 | ASME B16.5, EN 1092-1, DIN, JIS, GB or customer specification |
| 検査 | 化学分析, 機械的試験, PMIテスト, 次元, 静水圧 |
| 証明書 | EN 10204 3.1 材料証明書が利用可能 |
| 加工サービス | 切断, CNC加工, カスタムドリリング, カスタムサイズ加工 |
化学組成
The following chemical composition is for general reference for common zirconium flange grades. Actual composition depends on the selected ASTM grade, melting route and applicable material standard. Final values are confirmed by the material test certificate and project inspection requirements before shipment.
| 要素 | C | そして | ん | P | S | Cr | で | モー | 他の |
|---|---|---|---|---|---|---|---|---|---|
| R60702 Typical % | 0.05 最大 | 0.03 最大 | 0.05 最大 | 0.015 最大 | 0.015 最大 | 0.05 最大 | 0.05 最大 | 0.05 最大 | Hf 4.5 最大, Fe+Cr 0.20 最大, ○ 0.16 最大, N 0.025 最大 |
機械的性質
Mechanical properties of zirconium threaded flanges vary by grade, 製品形態, reduction ratio, annealed condition and section thickness. The values below are typical reference data for forged or wrought material used for flange machining. Certified test results are provided according to the actual heat and delivery condition.
| 学年 | 抗張力 | 降伏強さ | 伸長 | 硬度 | 密度 |
|---|---|---|---|---|---|
| R60702 | 379 MPa以上 | 207 MPa以上 | 16% 分 | Max 95 HRB | 6.51 g/cm3 |
| R60705 | 552 MPa以上 | 379 MPa以上 | 16% 分 | Max 32 HRC | 6.56 g/cm3 |
共通サイズ表
| サイズ範囲 | 圧力クラス | シール面 | 材料 | 可用性 |
|---|---|---|---|---|
| DN15 – DN50 | クラス 150 – 600 | RF | R60702 / R60704 | ストック / 生産 |
| DN65 – DN300 | クラス 150 – 1500 | RF / RTJ | R60702 / R60705 | ストック / 生産 |
| DN350 – DN600 | クラス 150 – 900 | RF / RTJ | R60702 / R60705 | 生産 |
| DN15 – DN150 | PN10 – PN100 | FF / RF | R60702 / R60704 | オーダーメイド |
各種仕様比較
| タイプ | 説明 | 一般的な使用方法 |
|---|---|---|
| ASME Threaded Flange | Female threaded flange manufactured to ASME B16.5 dimensions and pressure classes | NPT threaded process piping in chemical and specialty industrial systems |
| EN Threaded Flange | Threaded flange produced to EN 1092-1 dimensional requirements with project-specific threading | European process lines, water treatment skids and OEM equipment |
| RF Threaded Flange | Raised face design for use with standard gasketed bolted joints | General corrosive liquid and gas service |
| RTJ Threaded Flange | Ring type joint facing for higher pressure sealing performance | High-pressure corrosive process and critical hydrocarbon service |
同等の規格と国際名
Threaded flange dimensions can be produced to major international standards, while zirconium material grades are generally specified by ASTM and UNS designations. Equivalent project naming may vary by region, so final procurement should confirm both flange dimensional standard and zirconium alloy grade on the purchase order and MTC.
| 標準 / 地域 | 標準コード | 代表的なグレード / 同等 |
|---|---|---|
| アメリカ合衆国 | ASME B16.5 | Threaded flange in ASTM B564 UNS R60702 / R60704 / R60705 |
| ヨーロッパ | EN 1092-1 | EN dimensional flange machined from zirconium ASTM B564 R60702 |
| ドイツ | DIN 2527 / 2566 | DIN pattern threaded flange in zirconium grade R60702 or R60705 |
| 日本 | JIS B2220 | JIS flange dimensions with zirconium threaded bore to project requirement |
| 中国 | ギガバイト/トン 9119 | GB flange dimensions machined from zirconium forging or plate grade R60702 |
生産工程の流れ
Manufacturing control is important for zirconium threaded flanges because material cleanliness, machining accuracy and traceability directly affect corrosion performance and assembly reliability. SASA FLANGE applies process control from raw material verification to final marking and export packing.
- 1. 原材料の選択
- 2. 鍛造 / 切断
- 3. 熱処理
- 4. 荒加工
- 5. 仕上げ加工
- 6. 掘削
- 7. 表面処理
- 8. 検査
- 9. マーキング
- 10. パッキング
- 11. 配達
| プロセスステップ | 説明 | 品質管理ポイント |
|---|---|---|
| 原材料 | Select certified zirconium billets, forgings or plates with full heat records | 材料証明書とトレーサビリティ |
| 鍛造 | Hot forge or cut preform to required flange blank geometry | 鍛造温度と減速比 |
| 熱処理 | Stress relief or annealing according to grade and product form | 温度と保持時間の制御 |
| 機械加工 | Machine threads, シール面, bolt holes and outside dimensions | 寸法精度と表面仕上げ |
| 検査 | 出荷前の最終検査 | 寸法, 表面, PMI, 静水圧 |
製品検査
1. 化学成分検査
Chemical composition inspection verifies the zirconium grade against ASTM B564 requirements and project specifications. Spectrometric analysis checks controlled elements such as hafnium, iron, クロム, 酸素, nitrogen and residual impurities. This ensures the selected material grade is suitable for corrosive service and matches the heat number stated on the material certificate.
2. 機械的特性試験
Mechanical testing confirms that the zirconium material meets the specified tensile strength, 降伏強さ, elongation and hardness values for the ordered grade. Test samples are taken in accordance with applicable standards and reviewed against purchase requirements. These tests help verify flange integrity for assembly, pressure retention and service reliability.
3. 寸法検査
Dimensional inspection covers outside diameter, フランジの厚さ, ボルトサークル, bolt hole diameter, ハブの寸法, thread accuracy and sealing face finish. Raised face or ring joint details are checked with calibrated gauges and instruments. This inspection ensures compatibility with mating flanges, correct gasket seating and smooth installation at the job site.
4. PMI試験と静水圧試験
PMI testing is used to confirm positive material identification and prevent grade mix-up during production and packing. Hydrostatic testing can be arranged according to project requirement for assembled components or related fittings. SASA FLANGE 提供します EN 10204 3.1 証明書, inspection records and traceable marking for quality documentation and export compliance.
製品の梱包
- ✓木製ケース包装: 高圧・大口径製品に最適
- ✓シュリンクラップによるパレット梱包: バッチ出荷や標準サイズに適しています
- ✓防錆油塗装 + 耐水紙: 海上貨物の保護に使用されます
- ✓個別のビニール袋 + カートン: 小型継手やねじ製品に使用されます。
- ✓クリアマーキング: 学年, サイズ, 圧力クラス, ヒート番号とPO番号
アプリケーション
Zirconium threaded flanges are selected for piping systems that require excellent corrosion resistance together with convenient threaded installation. They are especially suitable for compact lines, maintenance-friendly systems and corrosive media service where welding is restricted, contamination must be minimized or disassembly is required for inspection and cleaning.
| 業界 | 代表的な用途 | この製品が使用される理由 |
|---|---|---|
| 石油とガス | Sampling lines, chemical injection systems and specialty corrosive service units | Provides corrosion resistance in aggressive media and allows weld-free threaded assembly |
| 化学処理 | Acid handling lines, リアクター接続, solvent units and organic acid process piping | Zirconium offers excellent resistance to many corrosive chemicals and process fluids |
| 発電 | FGD systems, chemical dosing lines and auxiliary corrosive service piping | Used where corrosion resistance and maintenance access are important |
| 水処理 | High-purity water systems, brine handling and aggressive chemical dosing packages | Suitable for contamination-sensitive and corrosion-critical service conditions |
| 海洋および海洋 | 腐食性のユーティリティライン, seawater-related specialty systems and skid-mounted equipment | Good resistance to severe service environments with compact threaded installation |
選ぶ理由 SASA FLANGE?
- ✓世界的な産業プロジェクト向けのねじ付きフランジの専門メーカー
- ✓カスタマイズされたサイズ, 図面による圧力クラスと材料グレード
- ✓完全な標準サポート: ASME, EN, DIN, JIS, GB, GOSTと顧客の仕様
- ✓熱数制御による材料トレーサビリティと EN 10204 3.1 材料証明書
- ✓化学分析, 機械的試験, PMIテスト, 静圧検査および寸法検査
- ✓標準品の在庫状況, リードタイム 3-7 日; カスタム生産 15-30 日
- ✓海上向け輸出グレードの梱包, 航空輸送と陸上輸送
- ✓15+ 長年の供給経験 50+ 世界中の国
よくある質問
Q: What is a zirconium threaded flange?
あ: A zirconium threaded flange is a female-threaded pipe flange machined from zirconium or zirconium alloy material for bolted piping connections without welding. It is used in corrosive process systems where high chemical resistance is required and where threaded installation offers easier maintenance, dismantling or field assembly compared with welded flange types.
Q: What materials are available for zirconium threaded flanges?
あ: 一般的な材料としては、 ASTM B564 zirconium grades R60702, R60704 and R60705. Grade selection depends on corrosion environment, mechanical strength and project specification. For many chemical applications, R60702 is widely used, while alloyed grades may be selected for higher strength or specific process conditions. Material selection should match the service medium and operating temperature.
Q: サポートされている圧力クラス?
あ: SASA FLANGE can supply zirconium threaded flanges in ASME Class 150, 300, 600, 900, 1500 and selected project-specific ratings, with metric PN ranges such as PN10 to PN100 where required. Actual availability depends on size, face type and threading requirement. High-pressure classes are generally produced to order due to the value and machining complexity of zirconium.
Q: できる SASA FLANGE カスタムサイズを供給する?
あ: はい. SASA FLANGE can manufacture custom zirconium threaded flanges according to drawings or project data sheets. We support non-standard outside diameters, 厚さ, bolt drilling, NPT or BSP threads, raised face or RTJ facing, special surface finish and customized marking. Material can be supplied from certified forgings or plates with full traceability and inspection documentation.
Q: どのような証明書が提供されるか?
あ: Standard quality documentation includes EN 10204 3.1 material certificate with heat number traceability. Depending on project requirements, we can also provide chemical analysis reports, mechanical test results, 寸法検査記録, PMI testing reports and packing lists. Hydrostatic testing or third-party inspection can be arranged when specified in the purchase order or contract documentation.
