Descripción
Especificaciones del producto y datos técnicos
A high performace nickel alloy used for severe corrosion environments
- ✓Excellent corrosion resistance to reducing and oxidizing environments
- ✓Well suited for hydrochloric and sulfuric acid environments
- ✓Strong resistance to stress corrosion cracking
- ✓Excellent mechanical properties at elevated temperatures
- ✓Alloy grades: C276, B2, B3, C22, Hastelloy X
- ✓Slip on flange features and benefits
Hastelloy® fasteners & flanges are Available from SASA FLANGE – such as Hastelloy C276, which is generally considered a versatile and highly corrosion resistant alloy. Hastelloy slip on flanges have excellent corrosion resistance in both oxidizing and reducing media which makes it well suited for a variety of strong corrosive applications. Hastelloy slip on flanges also have exceptional resistance to both sulfuric acid and hydrochloric acid.
Because Hastelloy slip on flanges resist some of the most severe media, Hastelloy slip on flanges are often utilized in chemical processing applications where acid chlorides, disolventes, formic and acetic acids, acetic anhydride, wet chlorine gas, hypochlorites, chlorine solutions and phosphoric acid are used. For chemical processing applications, Hastelloy C276 is the most common grade and one of the most corrosion resistant nickel alloys – exceeding that of most other nickel alloy grades like Inconel or Monel.
Tipos de bridas disponibles: Bridas, Bridas de junta solapada, Bridas deslizantes, Bridas de soldadura, Bridas roscadas, Bridas con cuello soldado
Referencia de dimensiones de brida
Hastelloy Slip on Flanges Built for Aggressive Service
SASA FLANGE supplies hastelloy slip on flanges made from high performance nickel alloys for severe corrosion environments.
These flanges offer excellent corrosion resistance in both reducing and oxidizing media, strong resistance to stress corrosion cracking, and excellent mechanical properties at elevated temperatures.
They are well suited for hydrochloric and sulfuric acid environments, making them a dependable choice for demanding alloy piping systems used in power, petroquímico, and other high temperature process services.
Hastelloy Slip on Flanges Grades and Compliance Details
SASA FLANGE offers hastelloy slip on flanges in grades C276, B2, B3, C22, and Hastelloy X.
C276 is UNS N10276 and commonly supplied to ASTM B574, ASME SB574, ASTM G28-A/B, EN 10204-3.1, ASTM B619, ASME SB619, ASTM B366, ASME SB366, ASTM B564, ASME SB564, ASTM B575, ASME SB575, ASME B16.5, y ASTM B462 or ASME SB462.
B2 uses UNS N10665, B3 uses UNS N10675, and C22 uses UNS N06022 with Werkstoff grades also listed.
Hastelloy Slip on Flanges Across Critical Process Industries
Hastelloy slip on flanges from SASA FLANGE are widely used in chemical processing where acid chlorides, disolventes, formic acid, acetic acid, acetic anhydride, wet chlorine gas, hypochlorites, chlorine solutions, and phosphoric acid are handled.
In petrochemical cracking furnace systems, their resistance to severe corrosive media supports reliable joints.
In high temperature steam and power plant services, excellent mechanical properties at elevated temperatures and resistance to stress corrosion cracking help maintain long term performance.
Hastelloy Slip on Flanges Ready Fast from SASA FLANGE
Elegir SASA FLANGE for hastelloy slip on flanges when you need versatile corrosion resistance, proven acid service capability, and dependable alloy performance in severe media.
We support made-to-order supply with typical production in 15-30 days and quality assurance to ISO 9001:2015 estándares.
Whether your requirement is C276, B2, B3, or C22, contact our team today at sales@sasaflange.com or WhatsApp +86 13764965049 for fast delivery support and technical assistance.
¿Por qué elegir? SASA FLANGE?
Múltiples clases de presiónManufactured to ASME B16.5 dimensional requirements, supporting standard flange system compatibility for industrial piping assemblies. |
Tolerancias dimensionales precisasProduced to dimensions per ASME B16.5 y ASME B16.9 where specified for reliable installation and fit-up. |
Resistente a la corrosiónExcellent resistance to reducing and oxidizing environments, ácido sulfúrico, ácido clorhídrico, stress corrosion cracking and localized attack. |
ISO 9001 CertificadoEN 10204-3.1 material certification is specified, supporting documented traceability and inspection for critical process industries. |
Precios competitivosVersatile Hastelloy grades provide strong value in severe chemical service by combining durability with broad application suitability. |
Envío globalStock availability supports prompt supply for worldwide industrial projects requiring corrosion resistant nickel alloy flanges. |
hastelloy slip on flanges Application Scenario
The hastelloy slip on flanges is widely deployed across critical industrial sectors where reliable pipe sealing and pressure containment are essential. Los escenarios de aplicación típicos incluyen:
Desde tuberías de refinería de alta presión hasta redes municipales de distribución de agua, the hastelloy slip on flanges ensures leak-free connections and long-term service reliability in demanding environments.

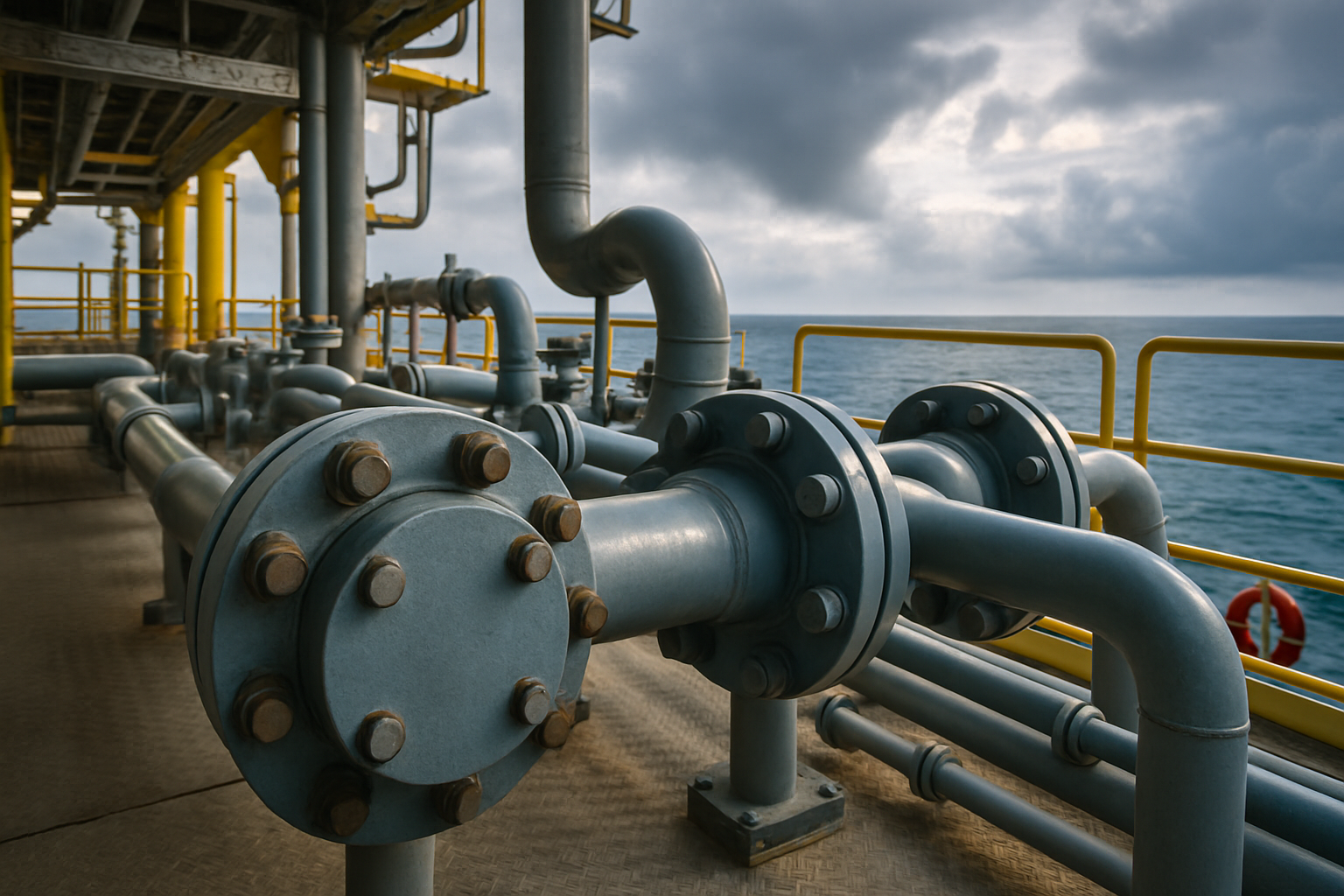

hastelloy slip on flanges installed in industrial piping system
Preguntas frecuentes
q: What is a hastelloy slip on flanges used for?
A: Slip-on flanges are used to connect corrosion-resistant piping to valves, zapatillas, and process equipment where easy alignment and fillet welding are preferred. Hastelloy grades such as C276, C22, and B3 are selected for aggressive chemical service, cloruros, ácidos, wet scrubbers, and high-temperature process lines. These flanges are machined to ASME B16.5 dimensions and supplied with EN 10204 3.1 proceso de dar un título, with optional X-ray inspection per ASME Section VIII UW-51.
q: What materials are available for hastelloy slip on flanges?
A: Available materials include Hastelloy C276, B2, B3, C22, and Hastelloy X. These nickel alloy grades are supplied to ASTM B574 and ASME SB574 requirements, with related fittings and components covered by ASTM/ASME standards such as B366, B564, B462, and B626. Material conditions listed include cold drawn, hot finished, cold rolled, hot rolled, recocido, and mercury-free, dependiendo del tamaño, form, and customer specification.
q: What pressure ratings does a hastelloy slip on flanges support?
A: Pressure ratings are produced according to the applicable ASME B16.5 flange class requested by the customer, since the exact class depends on size, grado de aleación, temperatura, and wall schedule. For slip-on design, dimensions follow ASME B16.5, while matching pipe or fittings may follow ASME B16.9. SASA FLANGE can confirm suitable class selection for C276, C22, B2, B3, or Hastelloy X service based on your operating conditions.
q: What standards does a hastelloy slip on flanges comply with?
A: These flanges comply with major nickel alloy and dimensional standards including ASTM B574, ASME SB574, ASME B16.5, ASTM G28-A/B, y EN 10204-3.1. Depending on associated piping components, related standards include ASTM/ASME B619, B366, B564, B462, B333, B626, ASME B16.9, B16.11, MSS SP-83, and AWS A5.11 / ASME SFA-5.11. Optional radiographic examination is available per ASME Section VIII Division 1 UW-51.
q: What is the lead time for custom hastelloy slip on flanges orders?
A: Custom orders for slip-on flanges in Hastelloy C276, B2, B3, C22, or Hastelloy X typically require 15-30 días, dependiendo del tamaño, ASME B16.5 clase, alcance de mecanizado, and testing requirements such as EN 10204 3.1 or X-ray per ASME Section VIII UW-51. Stock items can ship in 3-7 días. SASA FLANGE tiene 15+ years of manufacturing experience and operates under ISO 9001:2015 quality management.
