Descripción
Especificaciones del producto y datos técnicos
Good Mid-Range Corrosion Resistant Alloy
- ✓Mid-range corrosion resistant alloy
- ✓Decent mechanical strength to 1000°F
- ✓Aleación 20 chemistry and specifications
- ✓Aleación 20 sulfric acid performance
- ✓Datasheet for Alloy 20 bridas

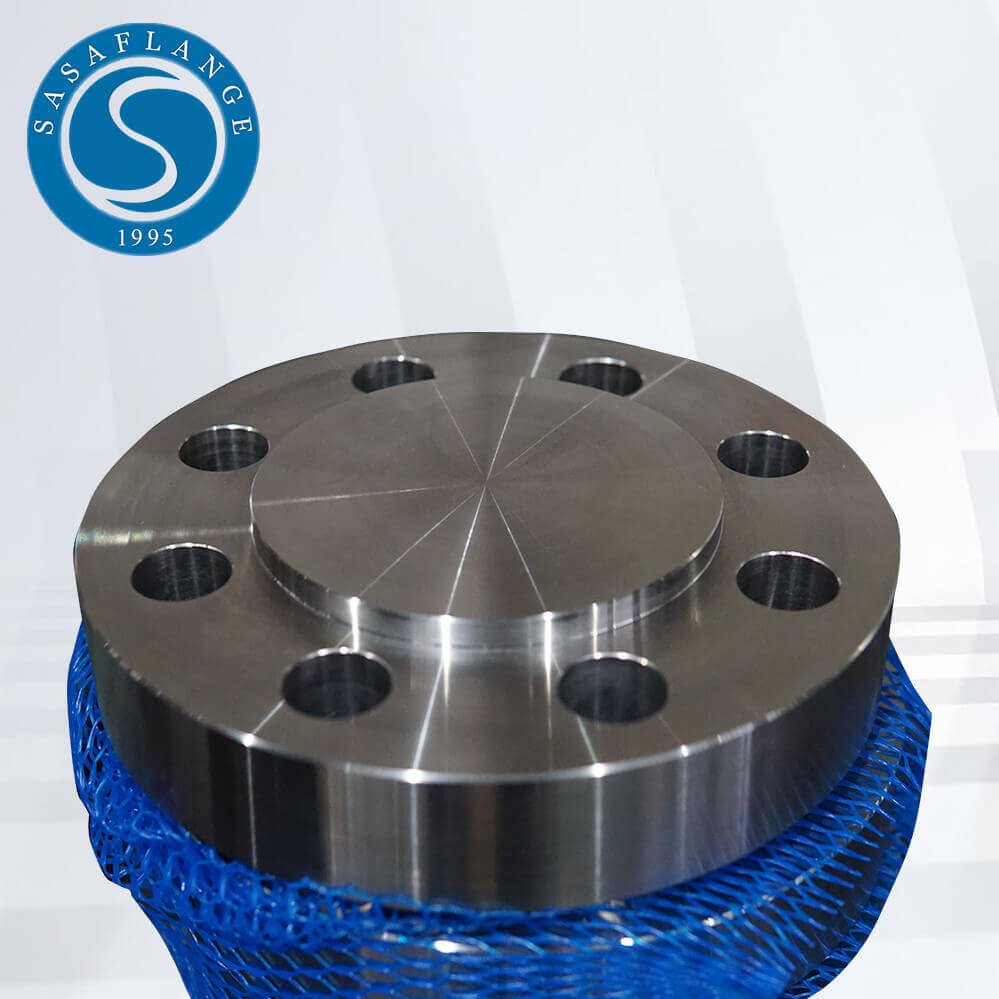

Also known as Carpenter 20 and 20CB-3, Aleación 20 blind flanges offer users a combination of nickel, cromo, molibdeno, and copper which provides good general corrosion resistance. Aleación 20 blind flanges are best suited for mid-range corrosion use – better than steel alloys but not at the level of high performance nickel based alloys like Hastelloy C276. Aleación 20 is a nickel alloy that was initially designed to withstand the harsh environment of hot sulfuric acid but also performs well in a variety of other acids. Aleación 20 blind flanges are an ideal choice when you don’t need the corrosion resistance power and price-tag of high performance nickel alloys like Hastelloy C276; but you need something that will give you more protection than 316 stainless steel or even a Super Duplex 2507 acero inoxidable.
Corrosion Resistance Alloy 20 blind flanges provide good performance in hot sulfuric acid, specifically they offer good resistance to stress-corrosion cracking in boiling sulfuric acid at specific range of 20% a 40% concentración, as well as general sulfuric acid resistance. Aleación 20 offers solid acid protection and will perform better than Duplex or even Monel, but for high temperature and high concentration acids, you may need to look to Inconel or Hastelloy fasteners. Además, Aleación 20 blind flanges also show useful resistance to phosphoric acid and nitric acid.
Mechanical Properties• Ultimate tensile strength: 80 ksi• Yield strength: 35 ksi• Density: 0.292 lb/in.3• Electrical Resistivity (RT) 651 ohm-cir mil/ft• Elongation: 30%
TemperatureIn addition to their corrosion resistance, Aleación 20 blind flanges also perform well at moderately high temperatures, with the ability to maintain their mechanical strength up to 1000°F.
WeldingAlloy 20 blind flanges are stabilized with Columbium to minimize carbide precipitation during welding. In addition it offers intergranular corrosion resistance in the as-welded condition.
Applications• Power plants rely on alloy 20 blind flanges for flue-gas desulfurization• Alloy 20 blind flanges are used to connect heat exchangers, mixing tanks, metal cleaning equipment, pickling tanks and racks, and piping in mid-range corrosive chemcial processing environments.• Alloy 20 blind flanges help solve corrosion issues in food and dye production.• Manufacturers of plastics and synthetic rubber also utilize alloy 20 sujetadores.
Tipos de bridas disponibles: Bridas, Lapped Joint Flanges, Bridas deslizantes, Bridas de soldadura, Bridas roscadas, Bridas con cuello soldado
Referencia de dimensiones de brida
Precision-Engineered alloy 20 blind flange for Critical Industrial Service
The alloy 20 blind flange from SASA FLANGE delivers proven reliability for demanding piping systems.
Manufactured from certified Alloy 20 / UNS N08020 material through precision forging and CNC machining processes.
Fully compliant with ASME B16.5, ASME, DIN international standards, ensuring seamless global project integration.
The nickel-iron-chromium Alloy 20 construction provides excellent mechanical properties and long-term durability.
Widely trusted across oil and gas, procesamiento químico, generación de energía, and water treatment industries.
SASA FLANGE offers complete size and pressure class availability backed by 15 years of manufacturing expertise.
Complete Size and Pressure Coverage: aleación 20 blind flange Specifications
SASA FLANGE manufactures the alloy 20 blind flange in sizes from 1/2 pulgada a 60 inches per ASME B16.5, ASME, DIN.
Available pressure ratings include Class 150-2500, suitable for utility services to ultra-high-pressure applications.
Sealing face configurations include Raised Face, Cara plana, Junta tipo anillo, and Lap Joint options.
Surface treatments available: Aceite antioxidante.
Every piece undergoes dimensional verification with calibrated instruments ensuring bolt hole accuracy and sealing surface integrity per applicable international standards.
From Refineries to Offshore Rigs: Where alloy 20 blind flange Performs
Oil and gas facilities install the alloy 20 blind flange in wellhead connections and process piping for critical pressure containment.
Chemical plants specify it for reactor vessels and heat exchanger connections requiring long-term corrosion resistance.
Power generation stations deploy it in steam cycle and cooling water systems.
Water treatment facilities use it throughout chemical dosing and distribution piping.
Marine and offshore installations rely on it for topside process piping in harsh saltwater environments.
Get Your alloy 20 blind flange Shipped Fast – Request a Quote Today
SASA FLANGE manufactures the alloy 20 blind flange to multiple international standards ensuring worldwide compatibility.
Standard sizes ship within 3-7 business days from stock; custom specifications manufactured in 15-30 días.
Every shipment includes Mill Test Certificate per EN 10204 3.1, PMI testing and dimensional inspection under ISO 9001:2015 gestión de calidad.
Contact our engineering team at sales@sasaflange.com or WhatsApp +86 13764965049 for competitive quotations and technical support.
¿Por qué elegir? SASA FLANGE?
15+ Years ExperienceEstablished flange manufacturer serving global industries since 2008. |
Multi-Standard ProductionManufacturing to ANSI, DIN, JIS, GOST standards with CMM inspection. |
Complete Material RangeCarbón, inoxidable, alloy steel with Mill Test Certificates. |
Entrega rápidaStock items ship 3-7 días. Custom orders 15-30 días. |
Documented Quality ControlQuality management ensuring consistent product reliability. |
Global ExportShipped to 50+ countries with professional packaging. |
aleación 20 blind flange Application Scenario
The alloy 20 blind flange is widely deployed across critical industrial sectors where reliable pipe sealing and pressure containment are essential. Los escenarios de aplicación típicos incluyen:
Desde tuberías de refinería de alta presión hasta redes municipales de distribución de agua, the alloy 20 blind flange ensures leak-free connections and long-term service reliability in demanding environments.
aleación 20 blind flange installed in industrial piping system
Preguntas frecuentes
q: What is a alloy 20 blind flange used for?
A: The alloy 20 blind flange creates secure, leak-proof pipe connections in industrial piping systems. Commonly installed in oil and gas, procesamiento químico, generación de energía, e instalaciones de tratamiento de agua. Made from Alloy 20 / UNS N08020 a ASTM B462 y ASME B16.5, ASME standards, it ensures reliable pressure containment. SASA FLANGE supplies full size range with certified quality documentation per EN 10204 3.1.
q: What materials are available for the alloy 20 brida ciega?
A: SASA FLANGE offers the alloy 20 blind flange in Alloy 20 (UNS N08020) a ASTM B462. Each grade provides specific advantages for different corrosion and temperature environments. Material selection depends on operating media, temperatura, y presión. Every piece includes Mill Test Certificate with verified chemical and mechanical properties.
q: What pressure ratings does the alloy 20 blind flange support?
A: The alloy 20 blind flange is available in Class 150-2500 pressure classes per ASME standards. Pressure-temperature ratings depend on material grade and operating temperature. Por ejemplo, A105 Class 150 handles 285 psi at ambient temperature. SASA FLANGE engineers can recommend the correct class for your specific operating conditions. Contact sales@sasaflange.com for pressure-temperature rating charts and selection guidance.
q: What standards does the alloy 20 blind flange comply with?
A: SASA FLANGEmanufactures the alloy 20 blind flange per ASME B16.5, ASME, DIN international standards. These standards govern dimensions, tolerancias, materiales, calificación, y requisitos de prueba. Our documented quality procedures ensures consistent compliance through calibrated inspection equipment and documented procedures. We also manufacture to project-specific specifications or customer drawings. Every product ships with full dimensional and material certification documentation.
q: What is the delivery time for alloy 20 brida ciega?
A: SASA FLANGE maintains ready stock of standard alloy 20 blind flange sizes and materials for 3-7 day delivery. Custom specifications require 15-30 days production time depending on complexity and quantity. We ship worldwide via sea freight, air freight, or express courier with professional packaging. Expedited production available for urgent orders. Contact sales@sasaflange.com or WhatsApp +86 13764965049 for current stock availability.
Embalaje y envío
📦 El embalaje es bastante importante especialmente en el caso de envíos internacionales en los que los envíos pasan por varios canales hasta llegar al destino final., por eso ponemos especial preocupación en el embalaje para que cada pieza llegue en perfectas condiciones..
SASA FLANGE Empaqueta productos de numerosas maneras según el tipo de producto y los requisitos del cliente.. Nuestras opciones de embalaje estándar incluyen:
- Cajas de madera contrachapada / cajas – para bridas pesadas y productos de gran diámetro
- Palets con film retractilado – para pedidos al por mayor y tamaños estándar
- Bolsas de polietileno individuales + cajas de carton – para bridas y accesorios pequeños
- Recubrimiento de aceite antioxidante + papel impermeable – para transporte marítimo de larga distancia
- Marcado y etiquetado personalizado – según las especificaciones del cliente o los requisitos del proyecto
Todos los embalajes cumplen con los estándares internacionales de exportación.. Se aceptan instrucciones de embalaje especiales previa solicitud..
