Nickel alloy · UNS N06200 · Forged weld neck flange
Alloy C-2000 weld neck flanges are nickel-chromium-molybdenum-copper piping components specified as UNS N06200. For a forged flange, identify ASTM B564 as the material specification and define the dimensional standard separately. 送信 SASA FLANGE your drawing and service requirements for quotation review.
C-2000, also known by the HASTELLOY® C-2000® trade name, is considered for demanding chemical connections. A weld neck flange has a tapered hub and a butt-weld end; its bore must match the adjoining pipe. Grade selection, joint dimensions and pressure-temperature suitability require separate checks.
Alloy C-2000 weld neck flange specification
| 製品形態 | Forged weld neck pipe flange with butt-weld connection |
|---|---|
| マテリアルアイデンティティ | 合金 C-2000 / UNS N06200; nickel-chromium-molybdenum-copper alloy |
| 材質仕様 | ASTM B564; ASME SB-564 where explicitly required and certified |
| Related designation | 2.4675 / NiCr23Mo16Cu; confirm the ordered product specification and certification |
| 寸法基準 | ASME B16.5 within its applicable size/class scope, or an approved project drawing |
| Size, pressure class and facing | State the exact NPS, class and RF/RTJ or other approved facing in the enquiry; subject to technical and supply review |
| Bore and weld end | Pipe outside diameter, 壁の厚さまたはスケジュール, bevel and transition detail |
| 検査書類 | Specify material certificate type, ヒートトレーサビリティ, dimensional report and required NDE before quotation |
The ASME class number is a rating designation, not a pressure expressed in psi. The allowable operating pressure depends on material, 温度, applicable code edition and joint design. A dimensional match alone does not establish an acceptable pressure rating.
Where C-2000 deserves a material review
The alloy’s copper addition distinguishes it from many other Ni-Cr-Mo grades and supports its evaluation in sulfuric-acid service. Chemical-processing equipment connections, reactor piping and heat-exchanger circuits are possible review cases. Selection must use the actual concentration, 温度, contaminants and operating cycle; the alloy name does not establish compatibility with every acid mixture.
C-2000 is a separate grade from C22 and C276
Order N06200 explicitly. C22は UNS N06022 and C276 is UNS N10276. They are separate alloys, so an offer for either alternative requires engineering approval. For a procurement comparison, read our C-2000 vs C22 flange selection guide; existing options include C22 flanges そして C276 flanges.
Confirm the entire welded connection
Specify matching pipe dimensions and the approved welding procedure, filler metal and weld examination. Review gasket compatibility, face finish, bolting and assembly requirements together. Choosing a corrosion-resistant flange does not protect an unsuitable gasket or adjoining component.
Inspection and documentation to request
- マテリアルアイデンティティ: certificate showing UNS N06200, ordered specification and edition, 熱数, chemical analysis and applicable mechanical test results.
- トレーサビリティ: reconcile the flange marking, heat number and certificate throughout machining and shipment.
- 寸法: check drilling, 厚さ, ハブの形状, ボア, ベベル, facing and finish against the approved requirements.
- 追加検査: define PMI, penetrant testing, ultrasonic examination or third-party inspection with methods and acceptance criteria where required.
PMI is an identity check within the instrument’s capabilities. It does not replace complete certification, heat-treatment records or all specified tests. Agree the inspection scope before manufacture rather than assuming that every optional test is included.
Request a quotation for UNS N06200 フランジ
Include these details so the enquiry can be assessed consistently:
- 合金 C-2000 / UNS N06200 そして ASTM B564 or the specifically required material standard.
- Weld neck type, dimensional standard and edition, nominal size and pressure class.
- Pipe OD, 壁の厚さ, ボア, weld-end detail and facing/finish.
- Design pressure and temperature, process fluid and relevant corrosion conditions.
- 量, drawing revision, ドキュメント, NDE and delivery destination.
Price and delivery depend on the approved specification, 材料ルート, quantity and inspection scope. Send your C-2000 flange RFQ or browse the weld neck flange category.
よくある質問
Is C-2000 a stainless steel grade?
いいえ. C-2000 is a nickel-base alloy identified as UNS N06200.
する ASTM B564 define the flange drilling dimensions?
いいえ. It is a material specification for nickel-alloy forgings. Define the applicable flange dimensional standard or approved drawing separately.
Can C22 be supplied against an N06200 order?
Only after an approved material substitution. C22/N06022 and C-2000/N06200 are separate grades.

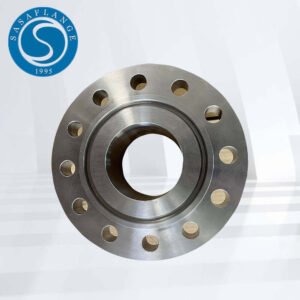

Is the illustrated flange proof of material or availability?
いいえ. The AI-generated image illustrates flange geometry. Material identity requires traceable documentation; supply scope is confirmed by quotation.
Technical references
- ヘインズ・インターナショナル: C-2000 alloy identity, specifications and corrosion data
- ASME B16.5: scope and rating framework
Technical content reviewed 17 10月 2026. HASTELLOY® and C-2000® are trademarks of Haynes International. Trade-name material origin must be agreed and documented when required.
