UNS N02200 Fittings
Nickel 200 (UNS N02200) is a commercially pure nickel alloy containing approximately 99% nickel. It delivers outstanding corrosion resistance in reducing and neutral environments, especially in caustic soda and alkaline solutions. Our Nickel 200 pipe fittings are manufactured according to ASTM B366 standards and are available in seamless and welded types, including 45°/90°/180° elbows, equal/reducing tees, concentric/eccentric reducers, caps, and customized configurations.
Nickel 200 fittings are widely used in chemical processing, caustic production, petrochemicals, heat exchangers, food processing, and pharmaceutical equipment. Material Test Certificates (EN 10204 3.1/3.2) and third-party inspections are available upon request.
Specification of Nickel 200 Pipe Fittings
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
Various Sizes of Alloy 200 Pipe Fittings
- UNS S31000 Seamless ButtWeld Fittings : 1/2 – 10 inch
- 310S Stainless Steel Welded Pipe Fittings : 1/2″ – 48″
- ASTM A403 WP310S Fittings : ½” NB to 24″ NB
Available UNS N02200 Seamless Fittings Stock list
| ASTM B366 UNS N02200 Fittings | Nickel 200 Pipe Fitting |

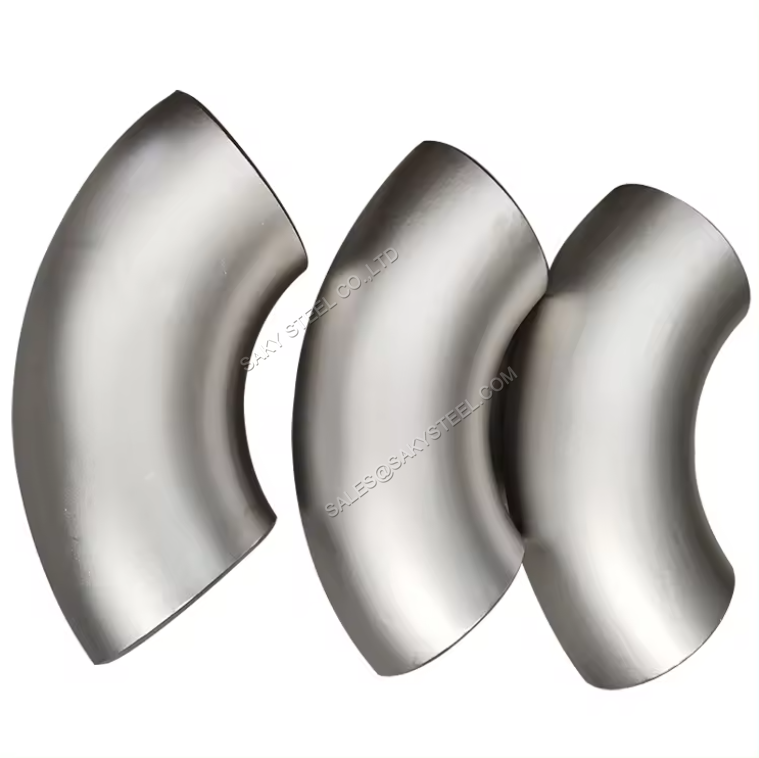

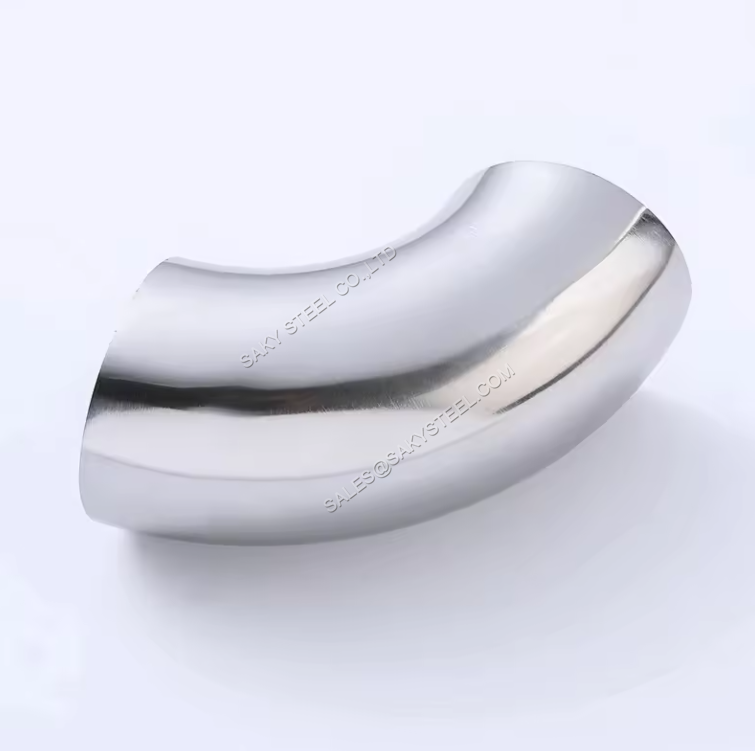

| 200 Nickel 90 Degree Elbow | Alloy 200 Nickel End Cap |
| Alloy 200 45 Degree Elbow | Nickel Alloy 200 Buttweld Fitting |
| Din 2.4066 1D Elbow | Nickel 200 UNS N02200 Short Stub End |
| Nickel Alloy 200 Stub End | ASTM B366 UNS N02200 Pipe Cap |
| 200 Nickel 3D Elbow | Din 2.4066 End Cap |
| Nickel Alloy 200 5D Elbow | Nickel 200 Reducer |
| ASTM B366 UNS N02200 Buttweld Fittings | Alloy 200 Nickel Pipe Bend |
| Alloy 200 Pipe Fittings | Din 2.4066 Long Stub End |
| Nickel Alloy 200 Eccentric Reducer | Alloy 200 Nickel Long Radius Elbow |

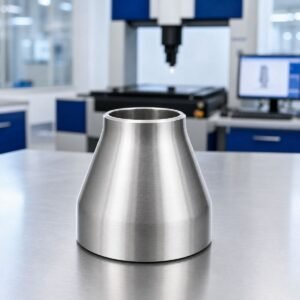

| Nickel 200 UNS N02200 Concentric Reducer | 200 Nickel Short Radius Elbow |
| Alloy 200 Equal Cross | Nickel 200 Pipe Cap |
| ASTM B366 UNS N02200 Lateral Tee | Alloy 200 Nickel Cross Tee |
| Nickel 200 UNS N02200 Reducing Cross | Nickel Alloy 200 Equal Cross |
| Nickel 200 Equal Tee | Din 2.4066 Stub End |
| 200 Nickel Concentric Reducer | Alloy 200 5D Elbow |
Types Din 2.4066 Pipe Fittings
| Types of Fittings | ||
|---|---|---|
 | |  |

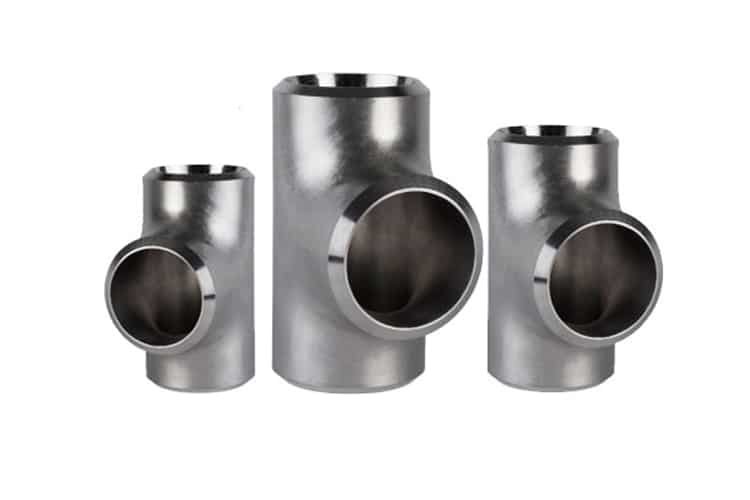

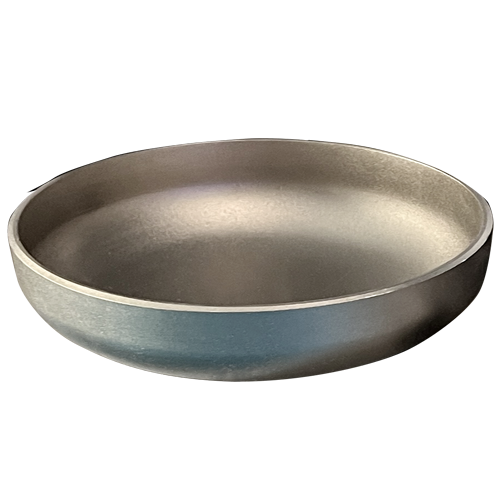

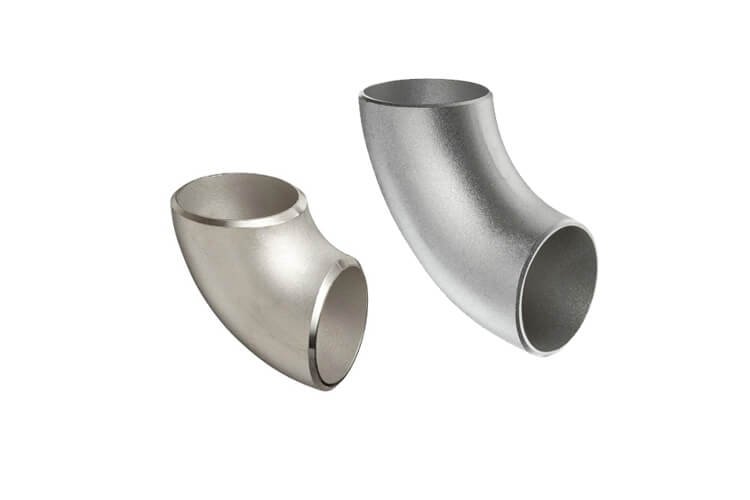

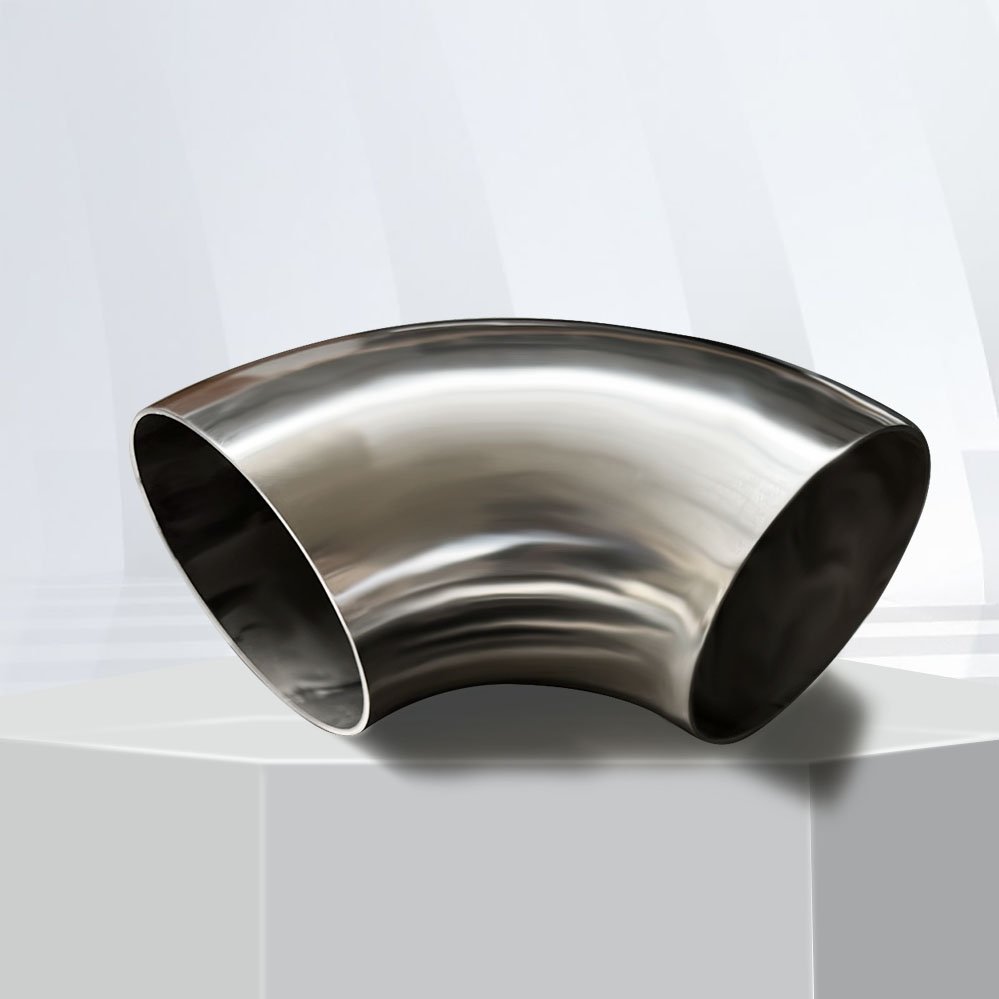

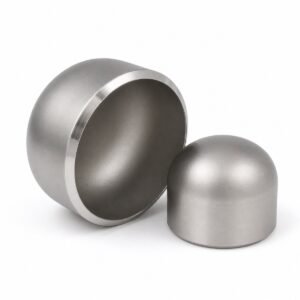

| Pipe Cap | Pipe Elbow | Euqal-tee |
Chemical Composition of Nickel Alloy 200 Fittings
| Nickel 200 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
Mechanical Properties of Alloy 200 Nickel Fittings
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
Material Equivalent of ASTM B366 UNS N02200 Fittings
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | —2 |
