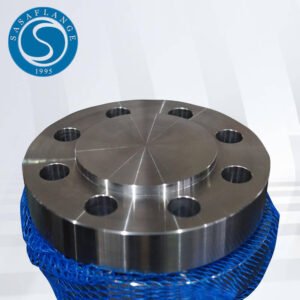

Monel 400 Flanges
Monel 400 Flanges are manufactured from a high-strength nickel-copper alloy (UNS N04400 / W.Nr. 2.4360) that provides excellent resistance to seawater, acids, and alkalis. Known for their durability and toughness, these flanges are widely used in marine engineering, chemical processing, oil & gas, and power generation. We supply a full range of ASTM B564 Monel 400 Flanges, including weld neck, slip-on, blind, socket weld, lap joint, and threaded types, available in ANSI/ASME, DIN, and JIS standards. At SASA FLANGE, we ensure reliable quality, full material traceability, and competitive pricing to meet the demanding needs of global clients.
Specifications of Monel 400 Flanges
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|
| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
Size Range of Alloy 400 Flange
- Monel grade 400 Flange : 1/2″ (15 NB) to 48″ (1200NB)
- Monel Alloy 400 Blind Flange : 1/2″ NB – 24″ NB
- Monel 400 UNS N04400 Slip on Flange : 1/2″ NB – 12″ NB
Chemical Composition of UNS N04400 Pipe Flange
| Monel 400 | Ni | C | Al | Mn | Si | Fe | Cu | S |
| 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
Mechanical Analysis of Monel 400 Blind Flange
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
Types of Alloy 400 Pipe Flange
 |  |  |  |
| Blind Flanges | Lap Joint Flanges | Long Weld Neck Flanges | Plate Flanges |
 |  |  |  |
| Reducing Flanges | Ring Type Joint Flanges | Slip On Flanges | Socket Weld Flanges |
 |  |  |  |
| Weld Neck Flanges | Tongue & Groove Flanges | Threaded / Screwed Flanges | Spectacle Blind Flanges |
Monel Alloy 400 Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS |
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 |
Stock of UNS N04400 Flanges
| Monel 400 Flange | Nickel 400 Blind Flange |
| Alloy Monel 400 Slip on Flange | Monel 400 UNS N04400 Threaded Flange |
| Monel grade 400 Reducing Flange | ASTM B564 UNS N04400 Socket Weld Flange |
| Alloy 400 Weld Neck Flanges | Monel Alloy 400 Lap Joint Flanges |
| ASTM B564 UNS N04400 Long Weld Neck Flanges | Alloy Monel 400 Spectacle Blind Flanges |
| Monel grade 400 Spades & Ring Spacers | Nickel 400 Nipoflange |
| Monel 400 UNS N04400 5D Weldoflange | Alloy 400 Flange Outlet |
| Monel 400 Forged Flanges | ASTM B564 UNS N04400 Plate Flange |
| Monel 400 UNS N04400 Ring Type Joint Flanges | Monel grade 400 Raised Face Flanges |
| Monel Alloy 400 Tongue and Groove Flanges | Alloy Monel 400 Male and Female Flange |
| Alloy 400 Reducing Flanges | Nickel 400 ASME B16.5 Flanges |
| Monel 400 Flanges | ASTM B564 UNS N04400 BS 10 Flanges |
| Monel grade 400 BS 4504 Flanges | Monel 400 UNS N04400 EN 1092-1 Flanges |
| Alloy 400 SORF Flange | Alloy Monel 400 BLRF Flange |
| Nickel 400 WNRF Flange | Monel 400 Series a Lap Joint Ring Flange |
| ASTM B564 UNS N04400 PN16 blind flange | Monel grade 400 Forged Socket Weld Pipe Flange |
| Alloy Monel 400 Class 300 slip on flange | Alloy 400 Slip On Weld Flange |
| Monel 400 UNS N04400 Forged steel slip on flanges | Nickel 400 Race face slip on flange |
| Monel 400 SWRF Flange | Monel Alloy 400 Forged blind flange |
| Alloy Monel 400 groove weld neck flange | ASTM B564 UNS N04400 Socket Weld Hub Flange |
| Monel grade 400 threaded lap joint flange | Nickel 400 Slip On Integral flange |
| Monel Alloy 400 Forged integral puddle flange | Monel 400 UNS N04400 table e long weld neck |
| Alloy Monel 400 Class 150 LBS Flange | Monel Alloy 400 PN10 Forged Flanges |
