Traceable alloy butt-weld fitting
ASTM A234 WP22 Alloy Steel Custom Unequal Tee
A procurement-ready custom unequal butt-weld tee in ASTM A234/A234M WP22 chromium-molybdenum alloy steel, supplied for high-temperature refinery, power and petrochemical service with project-defined dimensions, wall, construction and inspection.
What is a WP22 alloy steel custom unequal tee?
A custom unequal tee is used when standard reducing-tee combinations do not match the required run, outlet, branch or center-to-end dimensions. Each end wall, transition and branch reinforcement must be reviewed against the approved design.
WP22 is selected to match approved 2.25Cr-1Mo piping material classes in refineries, power plants and petrochemical facilities. Final acceptance depends on chemistry, mechanical properties, heat treatment, hardness and project welding requirements.
Technical specification
| Product type | Custom unequal butt-weld tee |
|---|---|
| Material | ASTM A234/A234M WP22 chromium-molybdenum alloy steel |
| Material family | 2.25Cr-1Mo low-alloy steel |
| Dimensional basis | Approved project drawing; applicable B16.9 requirements by agreement |
| Configuration | Custom run/outlet/branch diameters and center-to-end dimensions per approved drawing |
| Nominal size | Run × outlet × branch dimensions reviewed individually for manufacturability |
| Wall thickness | Standard schedules, heavy wall and project-specific wall subject to manufacturing review |
| Construction | Formed or fabricated construction subject to material specification, code and approved drawing |
| End preparation | Butt-weld bevel matched to connecting pipe wall and approved welding detail |
| Heat treatment | In accordance with ASTM A234 and the ordered WP22 grade/class requirements |
| Documentation | EN 10204 3.1 MTC, heat traceability, PMI, dimensions and additional NDE as ordered |
Available size and wall combinations depend on alloy, forming route, construction and quantity. Confirm the exact pipe outside diameter and wall in the RFQ.
Standards and technical references
Dimensional standard
The approved project drawing controls non-standard unequal-tee geometry. ASME B16.9 applies only to requirements and configurations explicitly included in the order and within its scope.
Material specification
ASTM A234/A234M covers wrought carbon and alloy steel fittings for moderate and elevated-temperature service.
Why select WP22?
WP22 is considered for superheated steam, hot hydrogen or hydrocarbon process systems, furnace connections and other services whose piping class specifies 2.25Cr-1Mo fittings.
| Selection point | WP22 | WP11 |
|---|---|---|
| Alloy level | Higher Cr-Mo alloy level | Lower Cr-Mo alloy level |
| Typical selection | Compatible 2.25Cr-1Mo piping | Compatible 1.25Cr-0.5Mo piping |
| Heat treatment | Project-controlled and grade-specific | Project-controlled and grade-specific |
| Substitution | Engineering approval required | Engineering approval required |
Typical applications
| Industry | Typical fitting duty | Why this material is considered |
|---|---|---|
| Power generation | Special three-diameter branch connection in process piping | High-temperature steam and boiler-associated piping |
| Refining | Large-bore header transition with a non-standard branch | Hot process and hydrogen-service material classes where approved |
| Petrochemical | Replacement fitting matched to existing plant dimensions | Elevated-temperature process equipment connections |
Application examples are selection context, not a design approval. Confirm process chemistry, pressure, temperature, weld procedure and governing code.
Manufacturing, inspection and documentation
Custom unequal-tee manufacture starts with drawing approval and requires verification of every end diameter, wall, center-to-end dimension, transition, branch profile and bevel. WP22 procurement should define heat treatment, hardness limits, NDE and any hydrogen-service or creep-service requirements.
Heat-number traceability and PMI when specified.
All three end ODs/walls, center-to-end dimensions, transitions and bevels checked to drawing.
PT, MT where applicable, UT, RT or third-party witnessing to the ordered scope.
MTC, heat-treatment and inspection records compiled to project requirements.
RFQ checklist
- Complete material grade and UNS where applicable
- ASME B16.9 edition or approved project drawing
- Run, outlet and branch sizes
- Schedule or exact wall thickness at every end
- Seamless or welded construction/class
- Bevel detail and matching pipe dimensions
- Quantity, destination and required delivery date
- EN 10204 3.1, PMI, dimensional and NDE requirements
Frequently asked questions
What is a WP22 alloy steel custom unequal tee?
It is a Custom unequal butt-weld tee manufactured from ASTM A234/A234M WP22 chromium-molybdenum alloy steel. It is supplied to an approved drawing when the run ends, branch size or center-to-end dimensions fall outside the standard reducing-tee combination. The ordered material specification controls chemistry, mechanical properties, heat treatment and testing.
Which standard applies to this fitting?
The approved project drawing controls non-standard unequal-tee geometry. ASME B16.9 applies only to requirements and configurations explicitly included in the order and within its scope. The material basis is ASTM A234/A234M WP22 chromium-molybdenum alloy steel. The purchase order must state the required edition, construction, size, wall and supplementary examinations.
Where is WP22 typically selected?
WP22 is considered for superheated steam, hot hydrogen or hydrocarbon process systems, furnace connections and other services whose piping class specifies 2.25Cr-1Mo fittings. Material suitability still depends on fluid chemistry, pressure, temperature, fabrication, corrosion allowance and the governing piping code.
Can heavy-wall and welded construction be supplied?
Yes, subject to manufacturing review. Provide the exact outside diameter, wall thickness or schedule, construction class, end preparation, quantity and NDE requirements so feasibility can be confirmed.
What should an RFQ include?
State the complete material grade, dimensional standard or approved drawing, run and branch sizes, schedule or exact wall, seamless or welded construction, bevel detail, quantity, destination, certification and inspection scope.

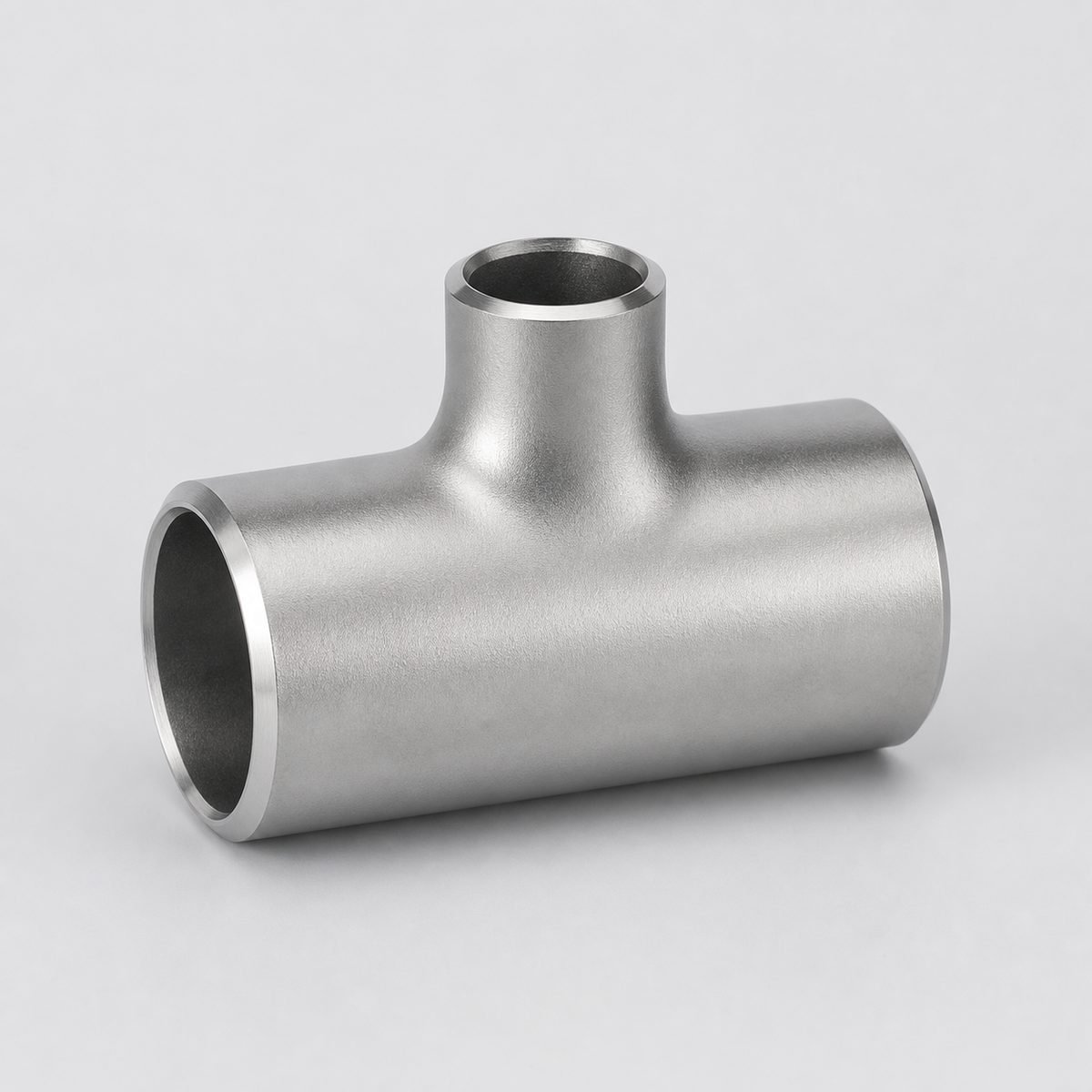

Product image is representative. Surface appearance varies by alloy, manufacturing route and finish.
Request a technical quotation
Send the material, size combination, wall, quantity, drawing or standard, and inspection requirements for review.
