Описание
Linear-motion flow control and isolation valve

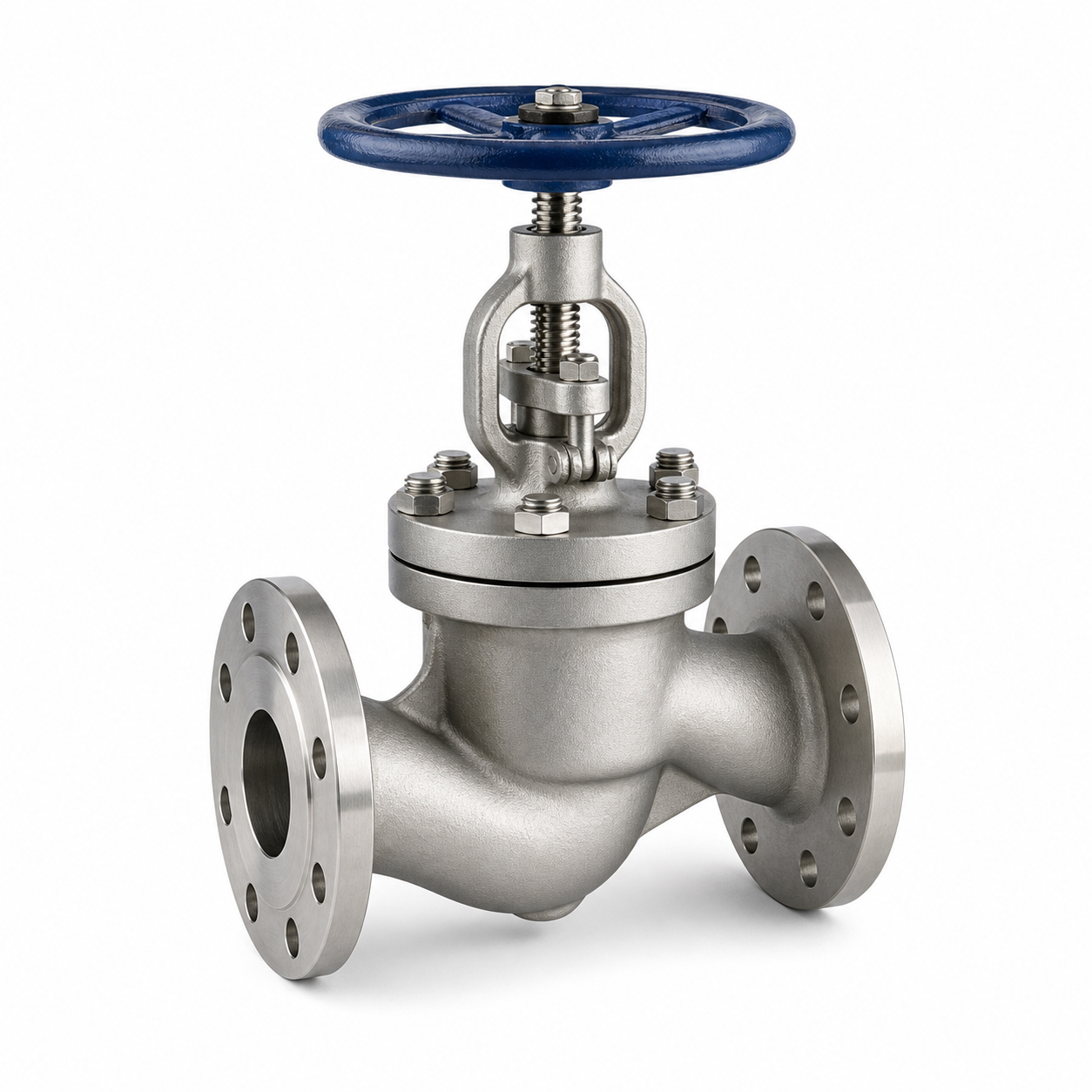

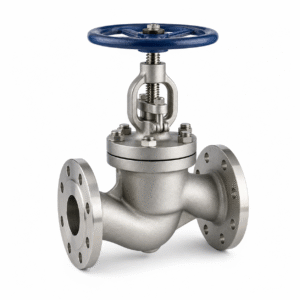

Шаровой клапан из нержавеющей стали
A stainless steel globe valve for controlled throttling and positive isolation, with body pattern, trim contour, materials and operator selected for the process duty.
What is a stainless steel globe valve?
A globe valve moves a disc or plug perpendicular to a stationary seat. Its internal flow path creates more pressure drop than a gate valve, but the arrangement provides better flow regulation and more controlled shutoff during frequent operation.
Standard T-pattern bodies are common for general process service. Y-pattern and angle-pattern designs can be selected when lower pressure loss, drainage or piping layout is important. Throttling performance depends on plug contour, seat design, travel, actuator and process conditions.
Globe valve specifications
| Продукт | Stainless steel globe valve |
|---|---|
| Body pattern | T-pattern; Y-pattern or angle pattern as separate design options |
| Строительство | Bolted bonnet; pressure seal or bellows seal only when separately designed and ordered |
| Closure member | Plug, composition disc or engineered regulating contour according to duty |
| Body materials | ASTM A351 CF8/CF8M/CF3/CF3M; duplex or nickel alloy by specification |
| Trim and seating | Stainless/alloy trim with renewable, integral or hardfaced seats as ordered |
| Номинальное давление | ASME Class or PN rating verified against material and temperature |
| Торцевые соединения | РФ, RTJ or butt-weld according to design |
| Flow direction | Specified by valve design and operating duty |
| Операция | Handwheel, gearbox, pneumatic or electric actuator |
| Документация | Material records, отчет об испытаниях под давлением, flow/GA data and inspection dossier as ordered |
The table describes typical engineered supply options, not a universal stock range. Final size, pressure-temperature rating, подрезать, seat, operator and end connection must be confirmed against the purchase specification and applicable code edition.
Stainless steel and alloy material options
| Семейство материалов | Common cast designations | Typical selection basis |
|---|---|---|
| Austenitic stainless steel | ASTM A351 CF8, CF8M, CF3 and CF3M | General corrosion resistance; CF8M/CF3M adds molybdenum for improved chloride resistance. |
| Дуплекс из нержавеющей стали | ASTM A995/A890 4A and related 2205 оценки | Higher strength and improved chloride stress-corrosion resistance when properly specified. |
| Super duplex stainless steel | ASTM A995/A890 5A or 6A | Морская вода, offshore and high-chloride service subject to temperature and fabrication controls. |
| Nickel alloy | ASTM A494 grades matching C276, Сплав 20, Monel or other ordered chemistry | Selected from actual process chemistry, концентрация, temperature and contamination data. |
Дизайн, testing and project compliance
API 623
Common design basis for steel globe valves with flanged or butt-welding ends. State the required edition and valve pattern.
ASME B16.34
Provides pressure-temperature, материал, дизайн, examination, testing and marking requirements within scope.
API 598
Common basis for shell, backseat and closure pressure tests when specified.
IEC 60534
Relevant to engineered control-valve sizing and performance when the product is configured as a control valve, not automatically to every manual globe valve.
Standards are supplied only when stated in the quotation and purchase order. Пожаробезопасный, неорганизованные выбросы, кислый сервис, cryogenic and PED requirements require a defined design and supporting qualification or documentation.
Типичные применения
| Промышленность | Typical duty | Selection focus |
|---|---|---|
| Химическая обработка | Dosing, bypass and process regulation | Trim compatibility, leakage and controllability |
| Производство электроэнергии | Feedwater, drains and auxiliary services | Pressure drop, cavitation and temperature rating |
| нефтехимическая | Unit isolation and controlled letdown | Emissions packing, erosion and fire-safe philosophy |
| Water treatment | Flow regulation and chemical injection | Seat material, operating frequency and actuator sizing |
Application examples are not a service approval. The end user or piping materials engineer must verify corrosion compatibility, pressure-temperature limits, emissions class, operating frequency and applicable regulations.
Inspection and supply documentation
EN 10204 3.1 material records and heat-number traceability when ordered.
Shell and closure/seat testing to the ordered standard with documented acceptance criteria.
Positive material identification and PT/RT/UT scope arranged when specified in the inspection plan.
Размеры, маркировка, операция, coating/cleanliness, packing and document dossier checked before dispatch.
Контрольный список запросов предложений
- Design standard and body pattern
- Nominal size and pressure class or PN
- Тело, bonnet, stem, plug/disc, seat, packing and bolting materials
- Isolation or throttling duty
- Required flow coefficient or process flow data when applicable
- End connection and facing
- Жидкость, design pressure, temperature and differential pressure
- Actuation, emissions, NACE and inspection requirements
Часто задаваемые вопросы
Can a globe valve be used for throttling?
Да. Globe valves are commonly selected for regulated flow, but plug contour, allowable pressure drop, cavitation, noise, velocity and actuator requirements must be checked for the actual duty.
What is the difference between a globe valve and a gate valve?
A globe valve uses a disc moving onto a seat and is suitable for regulation, but has higher pressure drop. A gate valve provides a straighter flow path and is mainly used for full-open or full-closed isolation.
Which flow direction should be used?
Flow direction depends on the valve pattern, disc design, давление, temperature and operating objective. Follow the approved drawing and body flow arrow rather than applying one rule to every globe valve.
When is a bellows seal required?
A bellows seal may be selected where stem leakage must be minimized for hazardous, toxic, high-purity or vacuum service. Bellows material, cycle life and secondary packing arrangement must be specified.
Can hardfaced seating be supplied?
Да, when required for temperature, erosion, wear or leakage performance. The hardfacing alloy and deposition procedure must remain compatible with the body, trim and service fluid.
Request a stainless steel globe valve quotation
Send the valve pattern, размер, сорт, материалы, throttling duty, process conditions, ends and operator requirements.
